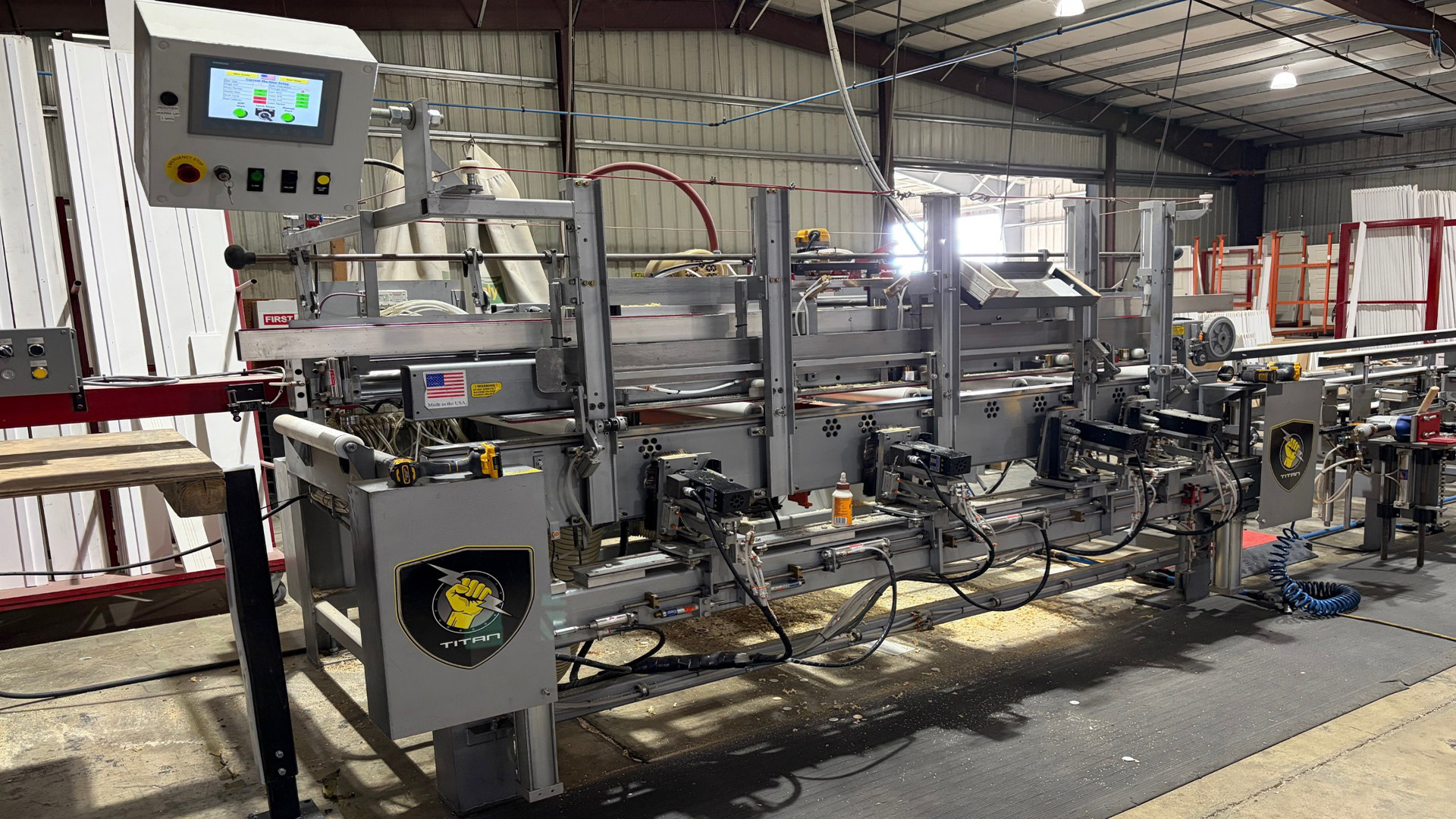

Titan
The Titan is a multi-function, high volume horizontal automated door machine for the production of Pre-Hung Doors, Slab Doors and Hinge and Strike Jambs. The Titan is ideal for producing residential and commercial doors requiring 2, 3 or 4 hinges and will accommodate 1-6 to 4-0 doors in width and 6-8 to 8-0 in height. Multiple machining selections are simplified with a bi-lingual touch screen control panel, which allows the operator to quickly change door and hinge specifications. The Titan can me utilized as a “stand-alone” machine or can be paired with the Renegade Door Loader and/or the Renegade Assembly Station to facilitate a higher volume production line. Renegade machinery is designed and built with rugged dependability and operator-friendly features allowing for easy maintenance and rapid diagnostic evaluation. The machine features are based on proven designs with a history of tough reliability.
Centurion
The Centurion is a multi-function, mid-volume vertical door machine for the production of Pre-Hung Doors, Slab Doors and Hinge Jambs. The Centurion is ideal for producing residential and commercial doors requiring 2, 3, or 4 hinges and will accommodate 1-6 to 4-0 doors in width, and 6-8 to 9-0 in height. Multiple machining selections are simplified with a bi-lingual touch-screen control panel which allows the operator to quickly change door and hinge specifications. The Centurion can be utilized as a ‘stand-alone’ machine or can be paired with Renegade Door Loader and/or the Renegade Assembly Station to facilitate a higher volume production line. Renegade machinery is designed and built with rugged dependability and operator-friendly features allowing for easy maintenance and rapid diagnostic evaluation. The machine features are based on proven designs with a history of tough reliability.
Hercules
The Renegade Hercules Door Lite Cut-Out Machine for rectangular, curved and multi-lite cut-outs in wood, fiberglass, or metal doors. Face boring is standard with a bulit-in steel template adjustable for backsets from 2 3/8″ to 2-3/4″. The two speed cutter head is supported by cross mounted lineal bearing shafts for length and width travel.
SR-1000 Strike Router
The SR-1000 Strike Router is most commonly used in conjunction with the Centurion although can be used with any other door machines. The SR-1000 can machine a flat, rabbeted or split jamb at a rate of 3-4 pieces per minute. The strike router is designed to machine interior or exterior jambs.
SR-1000
The CENTURION is a multi-function, mid-volume vertical door machine for the production of Pre-Hung Doors, Slab Doors and Hinge Jambs.
The CENTURION is ideal for producing residential and commercial doors requiring 2, 3, or 4 hinges and will accommodate 1-0 to 4-0 doors in width, and 6-8 to 9-0 in height. Multiple machining selections are simplified with a bi-lingual touch-screen control panel which allows the operator to quickly change door and hinge specifications.
The CENTURION can be utilized as a “stand-alone” machine or can be paired with RENEGADE DOOR LOADER and/ or the RENEGADE PRE-HANGING ASSEMBLY STATION to facilitate a higher volume production line. RENEGADE machinery is designed and built with rugged dependability and operator friendly features allowing for easy maintenance and rapid diagnostic evaluation. The machine features are based on proven designs with a history of tough reliability.
DOORS | JAMBS | |
WIDTH | 1-0 to 4-0 | 3″ to 10 1/2“ |
HEIGHT | To 9-0 | |
THICKNESS | 1 1/8” to 2 1/4“ | 1/2” to 1 3/4“ |
BUTT SIZES | 3 1/2“, 4”, 4 1/2“, 5” | |
DOORS TYPES | Interior/Exterior, Flush, Stile & Rail, Raised Moulding | |
JAMBS TYPES | Flat, Split, Single, Rabbited, Double Rabbited | |
BUTT SPACING | Infinite | |
BUTT RADIUS | 1/4” and 5/8“ |
